Combined Climate and Vibration Range
CVMS Climatic: Integrated TestChambers for Precise Climate and Vibration Testing
​

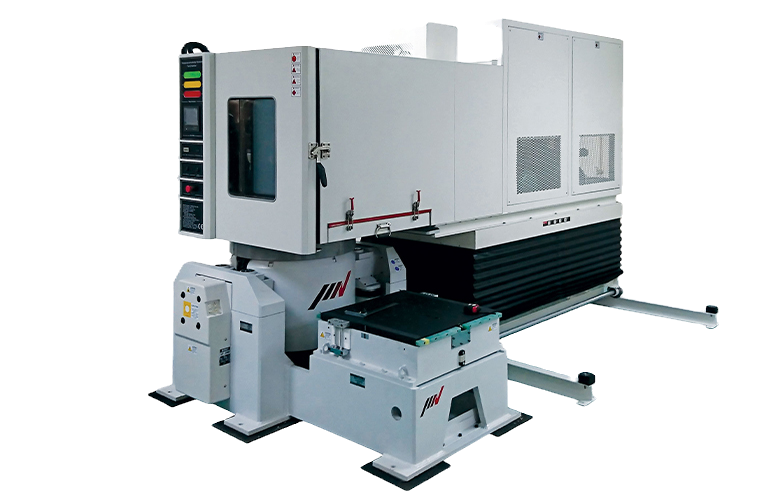

CVMS Climatic design and build environmental test chambers to work with all manufacturers and models of electro-dynamic and mechanical vibration test systems to provide combined climate and vibration test solutions.
​
The chambers are mounted on rails and can also be equipped with an elevator which makes precise horizontal and vertical positioning over a shaker, head expander, or slip table a simple operation. Bespoke gasket sets provide the seal between the shaker and the chamber environment and thermal barriers can also be supplied to protect the vibration system from extreme temperatures.
​
We can match a chamber with the customer’s existing shaker system or provide a turnkey package of environmental chamber and vibration system to meet customers’ precise test requirements.
​
As these chambers are built to order, it is very easy to customise the temperature range and performance and humidity control as required.
A full consultancy, supply, and installation service is provided.
Specifications
-
Test space: typically, 500 litres upwards
-
Temperature range: -70ËšC … +180ËšC (or customised to customer’s specification)
-
Temperature rate of change: 1, 3 or 5ËšC/min (or customised to customer’s specification)
-
Humidity range: 10%RH … 98%RH
-
Horizontal and vertical motorised positioning
​
Options
-
Customised floors to interface with armature, head expander or slip-table
-
Access portholes, door notches for test cables etc.
-
Gasket sets
-
Thermal barriers
-
Head expanders
-
Custom-built test fixtures
-
Ethernet communications​
